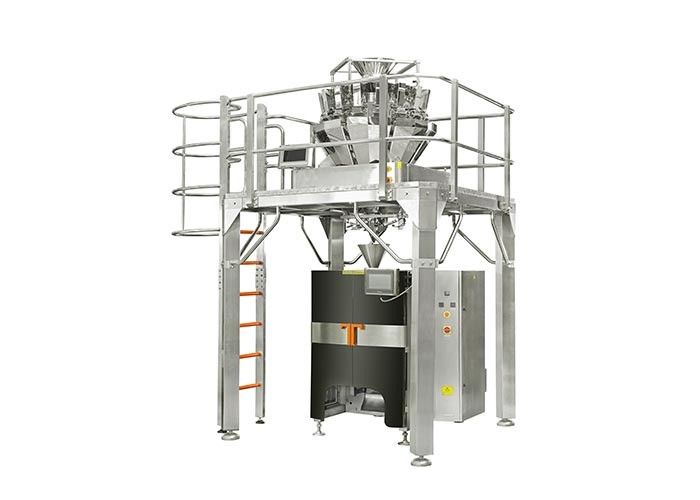

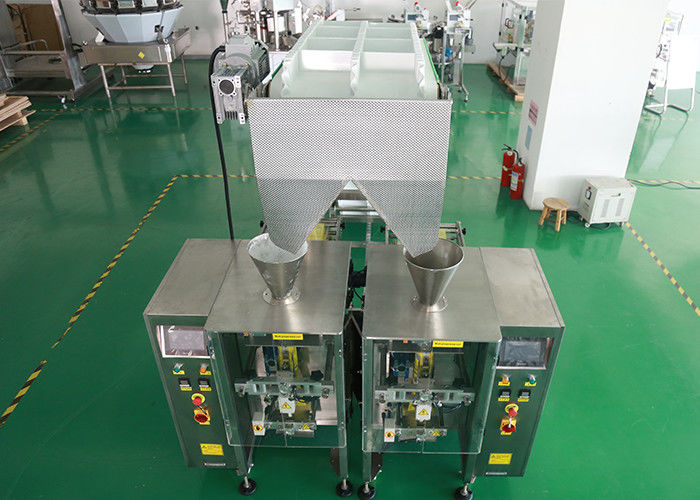

Toupack Multi-Function SUS304 Snacks Film Packing Machine High Speed, Accuracy, Stable Operation

SUS304 Snacks Film Packing Machine Features:

1. Imported PLC control system with the human-machine interface and easy operating visual touch screen.

2. Servo film running system, pneumatic horizontal sealing control, precise positioning, excellent machine performance, and nice packaging.

3. Perfect automatic alarm and protection function to minimize loss.

4. Full packaging process of measuring, feeding, filling, bag forming, and date printing in one automatic operation by the machine equipped with a measurement device.

5. Bag type: pillow bag, gusset bag, and hole-punching bag.

6. Maximize the reliability and intelligence of the whole machine.

SUS304 Snacks Film Packing Machine Application:

It is suitable for dosing and packaging fluidic or low fluidity materials, like milk powder, albumen powder, rice powder, coffee powder, solid drink, condiment, white sugar, dextrose, food additive, corn powder, icing powder, etc.

Meanwhile, It is also suitable for dosing and packaging pharmaceuticals, fodder, detergent powder, agriculture pesticide, and so on.

SUS304 Snacks Film Packing Machine Specifications:

Model 520VFFS 620VFFS 720VFFS

Packing Speed 10-60BPM 10-50BPM

10-50BPM

Bag Size 50-350(L)*50-50-250(W)mm 20-400(L)*50-50-250(W)mm 20-450(L)*140-350(W)mm

Bag Type pillow bag, gusset bag, hole punching bag

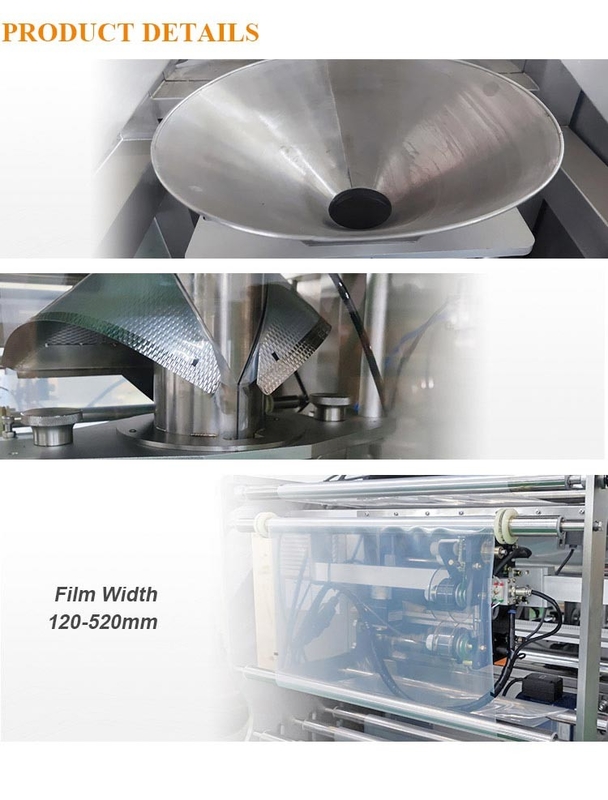

Film Width 120-520mm 620mm 720mm

Film Thickness 0.04-0.09mm 0.04-0.09mm 0.06-0.12mm

Film Material BOPP/CPP,BOPP/PE,BOPP/MCPP,PET/VMPET/PE,PET/PE

Pulling Belt Type synchronous belt film pulling synchronous servo motor belt film pulling synchronous servo motor belt film pulling

Air Consumption 0.8Mps 0.4m³/min 0.8Mps 0.6m³/min 200L/min0.7*105Mpa

Power Supply single phase 220V 50HZ/60HZ, 3.4/4.2KW single phase 220V 50HZ/60HZ, 4.0KW single phase 220V 50HZ/60HZ, 4.5KW

Machine Dimension 1,560(L)*1160(W)*1,530(H)mm 1,250(L)*1600(W)*1,700(H)mm 1,360(L)*1630(W)*1,900(H)mm

Machine Weight 480KG 800KG 900KG
