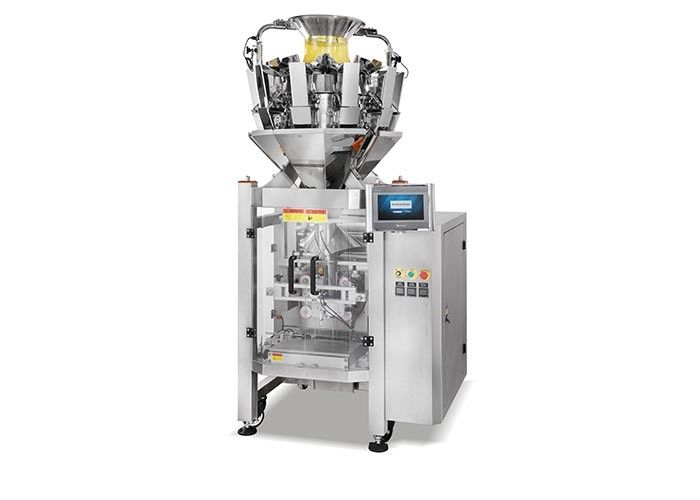

10/14 Head 0.8L 1.6L All In One Packing Machine Weigh From Fill Seal

Application & Features:

1. Compact and space saving design, suitable for limited workshop height within 3,000mm.

2. Cost saving

3. Golden ratio design to make the machine more steady and accurate.

4. Integrated weighing and packaging system, controlled by one HMI for easy operation.

5. Widely used on various kinds of products and customized solution per customer’s request.

Main Configuration:

1. Body frame: SUS304

2. Max film width: 420mm.

3. Max speed: 100 bpm (empty bags).

4. Packaging material: standard heat sealable composite film.

5. Main electrical configuration of packaging machine:

-- MITSUBISHI PLC

-- 2 sets of Panasonic servo system

-- AIRTAC pneumatic parts

-- Banner photoelectric sensor

-- Pneumatic hot stamp printer (NANYUN)

6. One set of former free of charge (film width: 420mm, double clip seal)

7. 10” touch screen

Specifications:

Model

TY-1A-YZ-M1008-101

TY-1A-YZ-M1016-101

TY-1A-YZ-M1408-101

TY-1A-YZ-M1416-101

Max. Weighing (one hopper) 300g 300g

Weighing Accuracy x (0.5) x (0.5)

Min. Scale Interval 0.1g 0.1g

Hopper Q’ty 10 14

Hopper Volume 0.8L / 1.6L 0.8L / 1.6L

Max. Weighing Speed 60 bpm 80 bpm

Max. Film Width 420mm 420mm

Packaging Material standard heat sealable composite film standard heat sealable composite film

Packing Speed 80 bpm (empty bags) 100 bpm (empty bags)

Power Supply AC220V ±10% 50HZ/60HZ, 2.5KW AC220V ±10% 50HZ/60HZ, 3KW

Machine Dimension

1,457(L)*1,080(W)*2,313(H)mm (0.8L)

1,700(L)*1,211(W)*2,415(H)mm (1.6L)

1457(L)×1080(W)×2,391(H)mm (0.8L)

1,700(L)*1,211(W)*2,515(H)mm (1.6L)

Packing Dimension

1,700(L)*1,335(W)*2,300(H)mm (0.8L)

1,750(L)*1,330(W)*2,440(H)mm (1.6L)

1700(L)*1335(W)*2400(H)mm(0.8L)

1,750(L)*1,330(W)*2,540(H)mm (1.6L)

Machine Weight 635kg (0.8L); 685kg (1.6L) 655kg (0.8L); 735kg (1.6L)

Packing Weight 755kg (0.8L); 805kg (1.6L) 805kg (0.8L); 855kg (1.6L)
