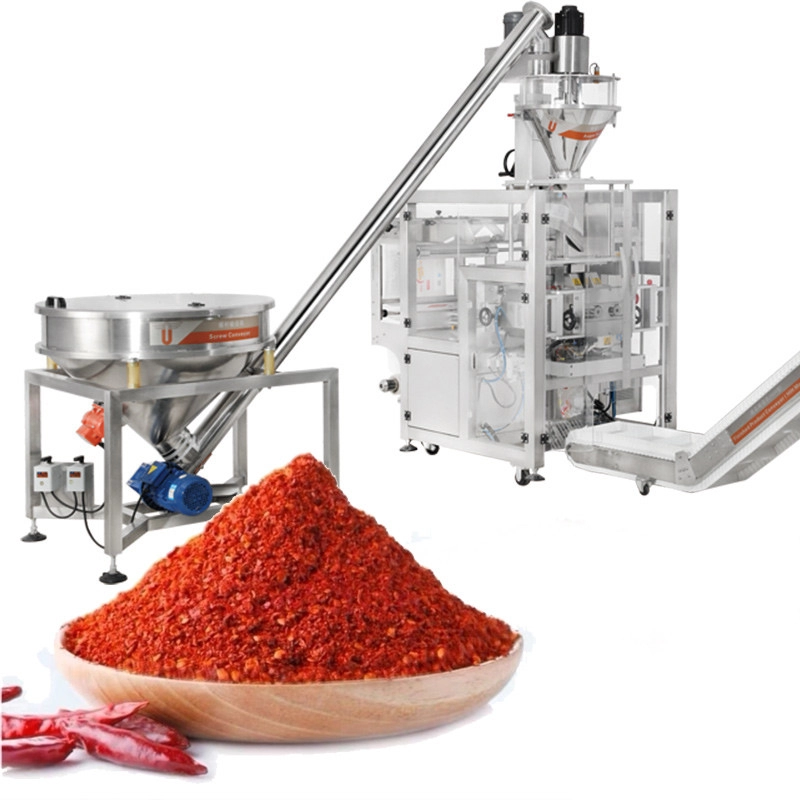

Automatic 10g 100g 250g Food Filling Packing Machine Milk Corn Flour Chili Cocoa Powder Seasoning Packing Machine

Automatic 10g 100g 250g Food Filling Packing Machine Milk Corn Flour Chili Cocoa Powder 0

The system is applicable for quantitative weighing and packaging of flour, powdered milk, feed stuff, rice flour,cocoa powder, solid beverage, granulated sugar, MSG, veterinary drugs, glucose, solid medicine, powdered additives, toner powder, talcum powder, pesticides, dyes, flavors, fragrance, etc.

Automatic 10g 100g 250g Food Filling Packing Machine Milk Corn Flour Chili Cocoa Powder 1

SCREW CONVEYOR TECHNICAL PARAMETERS

Body Material

SUS304

Conveying Type

Screw blade

Power Supply

Single / 3 phase 220V/380V 50HZ/60HZ

Power Consumption

0.61KW / 0.81KW / 1.56KW / 2.26KW / 3.06KW / 4.06KW

Silo Volume

100L / 200L

Conveying Speed

2m³/h, 3m³/h, 5m³/h, 7m³/h, 8m³/h, 12m³/h

Conveying Angle

Standard: 45° or per requirement (from 30°~60°)

Conveyor Pipe Diameter(mm)

Φ102, Φ114, Φ141, Φ159, Φ168, Φ219

Conveying Height(mm)

Standard: 1,850mm or per requirement (from 1,000 to 5,000mm)

Machine Dimension(mm)

Custom-made per requirement

SCREW CONVEYOR MAIN FUNCTION & FEATURES

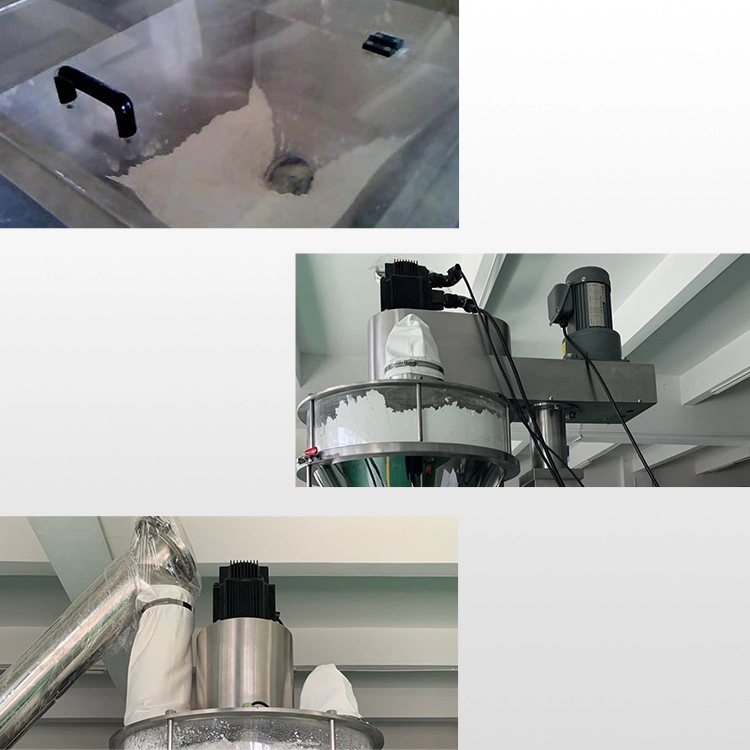

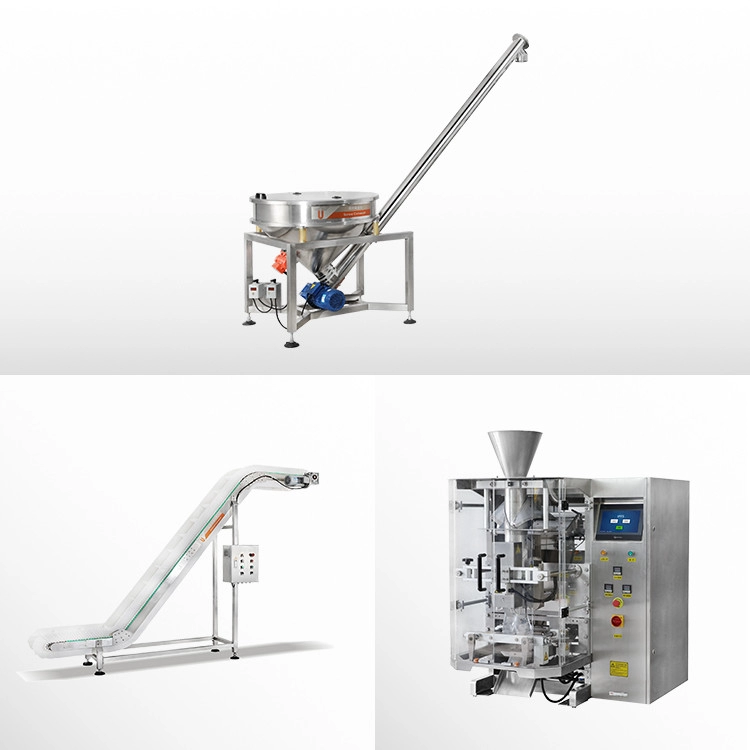

1. The whole system consists of fully-automatic VFFS, screw conveyor and Auger filter. Filling is by servomotor to drive screw. It is with the advantage of accurate positioning, high precision, fast speed, large torque, adjustable RPM, good stability, etc.

2. Exquisite design of appearance, sealing, film conveying, electrical collocation, etc.

3. Automatic Checking Function: If the bag is not open or not open completely, machine will not feed or conduct heat sealing, saving production cost.

4. Exquisite workmanship of screw, accurate measurement, easy cleaning of storage silo, stable operation and low failure rate. Advanced international technological level.
