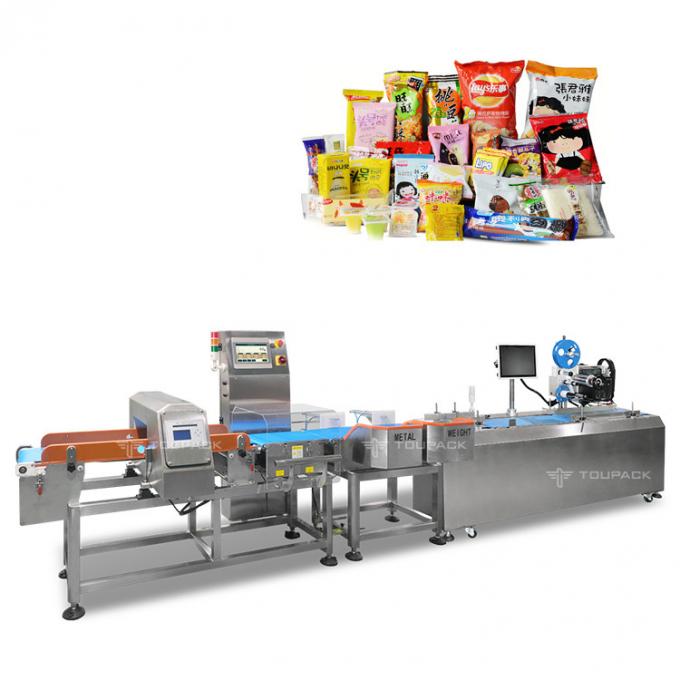

Conveyor Belt Combo Metal Detector And Check Weigher For Food Processing /Textile/ Plastic Industry

Conveyor Belt Combo Metal Detector And Check Weigher For Food Processing Textile Plastic Industry 0

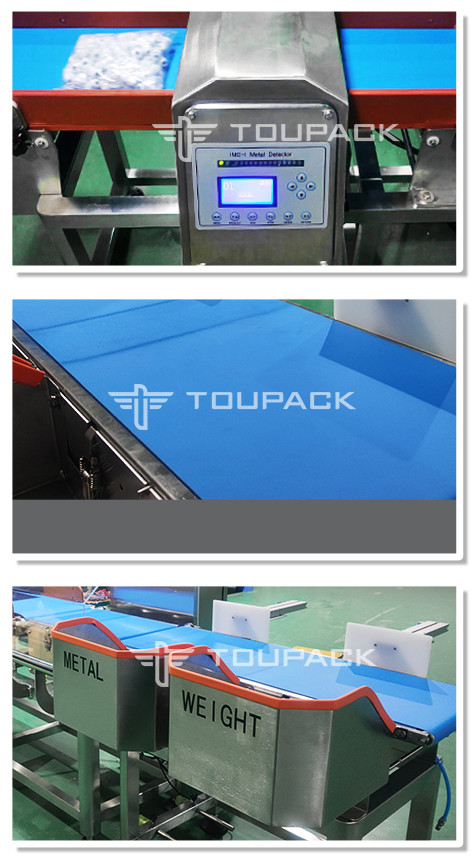

Metal Detector

Detects the presence of metallic foreign objects in individual products.

CW300 Check Weigher

Test the welght of individual products for conformity. It is widely used in many industries such as electronics, pharmaceuticals, food, beverage, health care products, daily chemicals, light industry, agriculture and by-products. Such as the food industry, seasoning products, pastry, ham sausage, instant noodles, frozen food, food additives, pigments, modifiers, preservatives and so on.

 Introduction

The Dynamic Checkweighing System is a method of safe guarding within the food and packaging industries for product weights. The automatic checkweighers are widely used for checking the weight of filled pack in motion, rejecting any products that are over or under the set weight. Thus helps the manufacturer to keep the track of production line, eliminate the complaints from the market and protect the brand reputation.

TOUPACK is having the wide range of checkweigher systems. The maximum weighing capacity ranging from 1g to 100Kg for packs such as small hardware or tea bag to shipper cartons. Our engineering team can customized the weighing machine depend on the product weight, pack size and the production capacity. Besides, Juzheng's checkweighers can be used with metal detectors and X-ray inspection machines to enable other attributes of the pack to be checked and acted upon accordingly.

Conveyor Belt Combo Metal Detector And Check Weigher For Food Processing Textile Plastic Industry 1

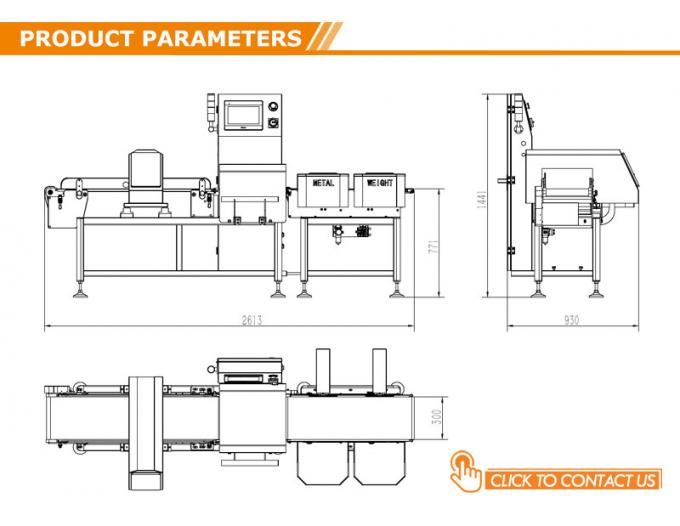

 Technical Specification

Power Supply

AC220V±10% 50HZ(60HZ

)

Rated Power 0.5kW

Effective detection width ≤300mm

Effective detection height ≤150mm

Metal Detection Precision Fe≥Φ0.5~0.8mm；SUS304≥Φ1.5~1.5mm

Single weighing range ≤5000g

Minimum scale ±0.5g~±2g

Conveyor speed 0.1g

Maximum speed 20~50m/min

Size of material to be weighed 80 pcs/min

Conveyor Belt Size ≤300mm(L)*290mm(W)

Product size 446mm(L)*300mm(W)
